Head
Payload 17kg / 37.5lb

  • Counterbalance knob

  • LED bubble level

  • Pan and tilt drag control

  • Pan and tilt lock

  • 1/4" and 3/8" spare screws

  • Extendable pan handle at minimum length

  • Extendable pan handle at maximum length

Operation manual
RHP75
Specification sheet
RHP75
Service parts
RHP75
Specifications
Counterbalance range 5.5 to 14kg / 12 to 31lb (C.G.125mm)
Payload 17kg / 37.5lb
Counterbalance Perfect Balance
Continuous Counterbalance
Drag mode 7steps
Tilt angle +90° / -70°
Temperature range -40°C to +60°C / -40°F to +140°F
Bubble level Illuminated
Camera plate Sliding plate
Sliding range +/-55mm / 2.2"
Long sliding plate Optional
Head base 100mm ball
Plate attachment 3/8" screw × 2
Spare screw 3/8" screw
Weight 4kg / 8.8lb
RHP75 Counterbalance chart

*When the innerspring is set to maximum strength, the tilt angle is limited to +/-40 degrees.

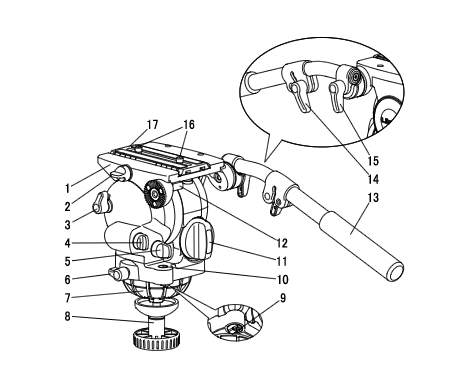

Parts name
  1. Head
  2. Sliding plate lock
  3. Tilt lock
  4. Tilt drag control
  5. Pan drag control
  6. Pan lock
  7. Ball leveler
  8. Bowl clamp
  9. Level illumination switch
  10. Bubble level
  11. Counterbalance knob
  12. Plate release button
  13. Pan handle
  14. Telescopic clamp
  15. Pan handle clamp
  16. Camera screw
  17. Sliding plate
